Prototype First or Build Production Tooling for Custom Silicone Gaskets and Seals?
The prototype-versus-production-tooling decision is really a risk decision. If the team still has unanswered fit, hardness, demolding or use questions
Kyler Yang · Founder9 min read
The prototype-versus-production-tooling decision is really a risk decision. If the team still has unanswered fit, hardness, demolding or use questions, production tooling may be premature.
This article is for OEM buyers and product teams evaluating a custom silicone project. It uses custom silicone gasket manufacturer as the search topic, but the purpose is to help a buyer make a better engineering or sourcing decision rather than repeat a sales page.
Start with the unanswered questions
A prototype makes sense when the team still needs to prove:
- fit in the real groove
- compression/load check
- leak/seal test defined by buyer
- dimension and flash inspection
- material compatibility/aging if required
If none of these are uncertain and the production CAD has already been validated in a similar process, production tooling may be reasonable.
What soft/prototype tooling is good at
Prototype tooling is useful when geometry may change, quantities are small, or the buyer needs functional parts quickly.

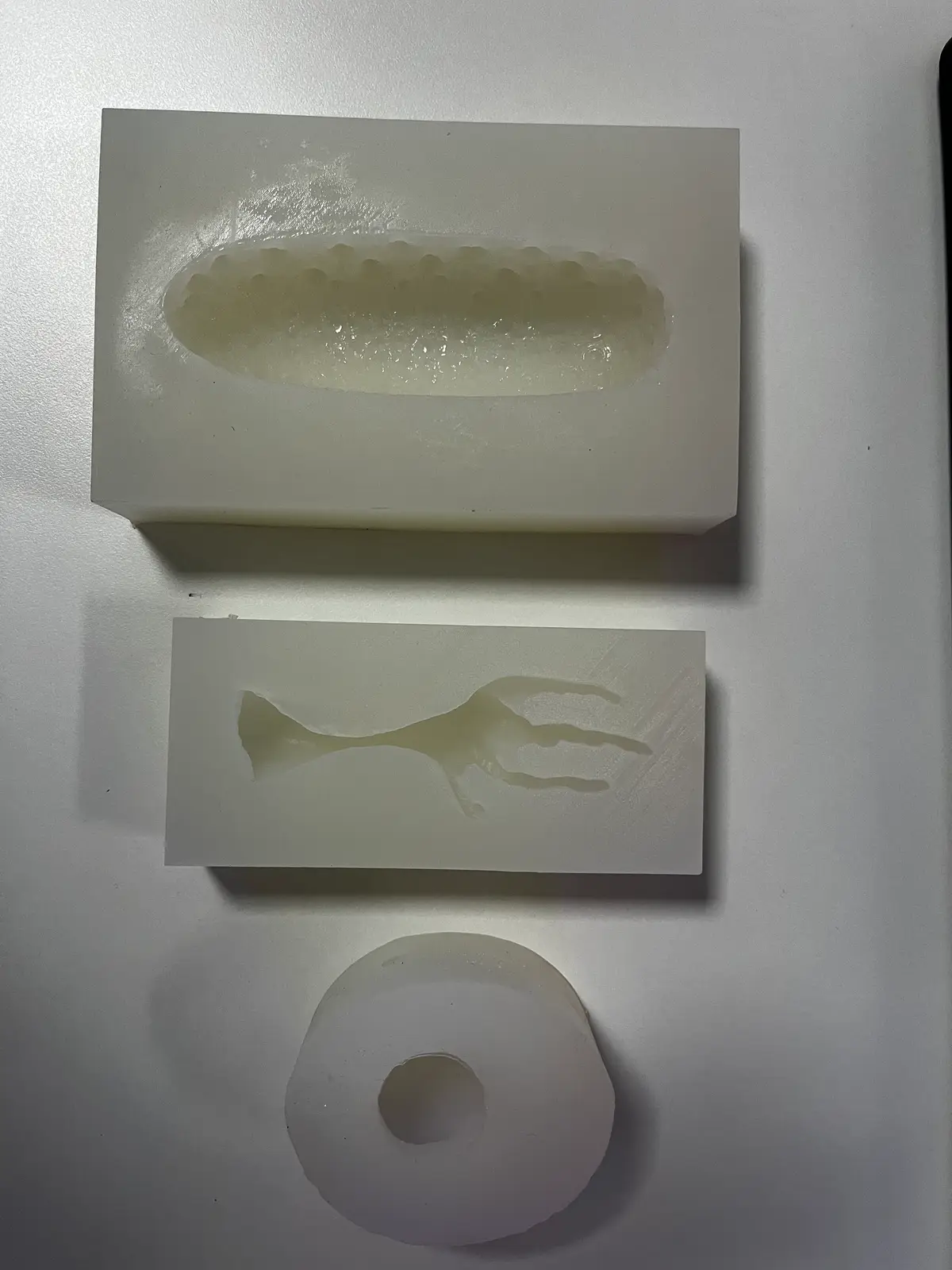

It is especially valuable for fit-sensitive silicone products and complex casting molds because real flex and demolding behavior are difficult to predict from rendering alone.
What production tooling is good at
Production tooling is designed for repeatability, controlled cycle, multi-cavity output, cleaner trim and long-term reorders.
The trade-off is higher NRE and less tolerance for late geometry changes.
EVT acceptance plan
Write down what each sample must prove:
- fit/function
- critical dimensions
- hardness/feel
- assembly/demold
- surface/logo
- failure under representative load
Engineering example (hypothetical): A buyer sends a 3D model and asks for the softest possible silicone. During review, the thin working feature is already flexible while the main body needs shape stability. Instead of reducing the entire part to a softer grade, the team prototypes the local wall and keeps more support in the body. The lesson is that geometry and hardness should be tuned together.
Pilot before full release
A pilot is the bridge between one successful sample and repeated production. It should use the intended material and enough pieces to expose normal process variation.
When to upgrade process
Do not scale by habit. If demand grows, compare:
- prototype/soft tooling when revision flexibility matters
- compression molding for many HCR/HTV production parts
- LSR injection molding when sustained volume and automation justify the tooling
- RTV mold making for flexible casting tools and master-based reproduction
The correct endpoint depends on annual volume and the cost of quality, not only the first tooling price.
What the drawing should make explicit
A good production drawing for custom silicone gaskets and seals should identify:
- units and revision
- datum or measurement references for critical dimensions
- Shore A and material only where they are actually controlled
- surface finish or texture when appearance matters
- parting-line/flash restrictions on functional surfaces
- logo/artwork revision
- mating component reference for fit-sensitive products
- test or inspection notes that cannot be inferred from geometry
Soft silicone is easy to distort during measurement. If a dimension is important, define how it is measured rather than adding an unrealistically tight tolerance.
How to use a golden sample
A golden sample is useful for characteristics that are hard to describe numerically: feel, color, surface gloss, acceptable trim witness, logo appearance or the way a flexible part sits on another component.
It should complement the drawing, not replace it.
Questions to ask before approving production
- Is the sample made from the intended production material?
- Is the CAD revision frozen?
- Have the critical dimensions been measured?
- Has the sample been tested in the real use or casting process?
- Are color and surface approved?
- Are required documents tied to the actual material?
- Is packaging defined?
- Is the repeat-order reference clear?
What RUUIPON would need to review this project
- STEP/STP or a dimensioned drawing; STL is useful for sculptural geometry
- physical sample or mating part when fit is critical
- material/use environment and target Shore A if known
- first-order quantity plus realistic repeat volume
- required reports, packaging, color and logo instructions
If some data is unavailable, state that clearly. A useful engineering review can distinguish “unknown and to be tested” from “fixed requirement.”
Review the related commercial page Send an RFQ
Frequently asked buyer questions
Should I give the supplier a target Shore A for custom silicone gaskets and seals?
Give it if it has already been validated. If not, describe the functional feel/load and allow prototype comparison. Hardness should not be guessed independently of geometry.
Is a physical sample better than STEP/STL?
For fit-sensitive or organic geometry, the physical sample is very valuable. For controlled dimensions and revisions, STEP is usually easier to engineer. Using both is ideal when available.
How many samples should be tested before production?
There is no universal number. Test enough pieces and use cycles to expose the failure mode that matters. A fit check may need several parts; a cavity-weight study may need samples across every tray region.
When should tooling be changed instead of the silicone grade?
When the failure repeats at the same geometry-sharp corner, thin transition, poor split, unsupported span or bad retention-the tool/design is often the more direct fix.
Can the same supplier document be reused for every silicone material?
No. Important compliance or material evidence should match the actual compound used for the order and the buyer's intended market/use.
Shop-floor review: what we would look at before calling this production-ready
For custom silicone gaskets and seals, we would put the approved sample beside the drawing and ask a small number of practical questions.
First, does the part or mold return to its intended shape after the real handling cycle? Silicone can pass a static dimensional check and still behave badly when stretched, compressed or filled.
Second, are the failure-prone features visible on the drawing? The likely problem areas for this topic include:
- compression set reduces sealing load
- wrong squeeze/interference causes leakage
- parting-line flash sits on the sealing bead
- hardness is chosen without groove geometry
- tolerance stack between mating parts is ignored
Third, is the inspection plan linked to these risks? If the concern is retention, test retention. If it is cavity weight, measure piece weight. If it is a split mold, check registration after repeated opening. If it is food-contact documentation, verify the report against the compound rather than the website claim.
Finally, keep the first approved production sample. On a repeat order six months later, that physical reference can resolve color, trim, feel and surface questions faster than a long email thread.
Detailed review worksheet
Use this worksheet before you accept a quotation or approve a sample.
Geometry
- Which feature is hardest to mold or demold?
- Which dimension controls function?
- Where can flash or a seam be tolerated?
- Is a thin section flexible by design, or simply thin because of packaging/appearance?
- Does the CAD show the real mating/casting condition?
Material
- What exact property is driving the silicone choice?
- Is Shore A already validated or still a prototype variable?
- What temperature, chemical, food, skin or outdoor exposure applies?
- Is there a required report tied to the material?
- Does color/translucency affect function or only appearance?
Process
- Which manufacturing route is quoted?
- Is the process suitable for the first quantity and forecast volume?
- Which secondary steps are included-trim, post-cure, assembly, printing, inspection?
- Will a future scale-up require new tooling?
Validation
For this topic, the central risk is compression set, squeeze, groove tolerance, sealing-line flash and media/temperature exposure.
The prototype plan should therefore include a test that can expose that risk. A leak or pressure test defined by the buyer is more useful than visual approval.
A decision table for common changes
| What you observe | First thing to check | Do not immediately assume |
|---|---|---|
| Part/mold too soft | Local wall/span and real load | Entire compound must be harder |
| Tear at one location | Radius, undercut, demold path | Silicone batch is bad |
| Fit too loose/tight | Mating-part dimensions + measurement method | Global shrink factor is wrong |
| Excess flash | Parting line, shutoff, tool condition | Trim operator is the only issue |
| Poor logo/detail | Artwork depth, fill/release, master finish | Higher pressure alone will fix it |
| Variation between cavities | Tool/cavity, support, filling/process | Average dimension tells the whole story |
This table matters because changing the wrong variable can create a second problem while hiding the first.
How to document a prototype result
Do not write only “sample approved.”
A useful approval note contains:
- sample ID
- drawing revision
- silicone/material identification
- hardness/color
- tool or cavity reference
- tests performed
- measured result
- cosmetic comments
- deviations accepted
- changes required before production
- photo/golden sample reference
That note is inexpensive insurance for the repeat order.
Practical measurement note
Measure sealing bead/groove-critical features and test in the real mating hardware.
For flexible silicone, repeatability of measurement is often more important than adding another decimal place. If two inspectors can produce very different numbers by squeezing the part differently, the method needs a fixture or clearer instruction.
What the operator may reveal that engineering misses
Consider how an operator fills, assembles, demolds, cleans, carries or inspects the part during a normal workday.
During a pilot, ask the operator:
- Which step is slow?
- Where do they need two hands?
- Where do they use more force than expected?
- Which defect is hardest to see?
- Which part of the mold is easiest to damage?
- Does packaging make the finished part harder to inspect?
Operator feedback can lead to small geometry changes that reduce recurring labor far more than a raw-material price negotiation.
Repeat-order control
Repeat orders should reference the same cad revision, material specification, golden sample and acceptance method.
Before a reorder, compare the previous approved reference to the new PO. If the buyer changes color, packaging, material evidence or a mating component, treat it as a controlled change rather than a routine reorder.
A hypothetical example of a good engineering conversation
Buyer: “Can you make this in 40 Shore A?”
Factory: “We can prototype 40A, but which behavior are you trying to control?”
Buyer: “It should stay in place but still be easy to remove.”
Factory: “Then we should test retention/removal on the real mating part. We may be able to keep 40A and change the local retention geometry instead of moving the whole part to 50A.”
That conversation is better than accepting the material number with no functional target. It ties the specification to the use.
Final checklist before you move on
- [ ] Search intent/question answered without generic filler
- [ ] Real application and failure mode defined
- [ ] Drawing/sample available
- [ ] Critical dimensions marked
- [ ] Material requirement is specific enough
- [ ] Prototype test written
- [ ] Tooling/NRE separated from unit cost
- [ ] Required documents named
- [ ] Production change-control reference defined
- [ ] Related commercial page linked
