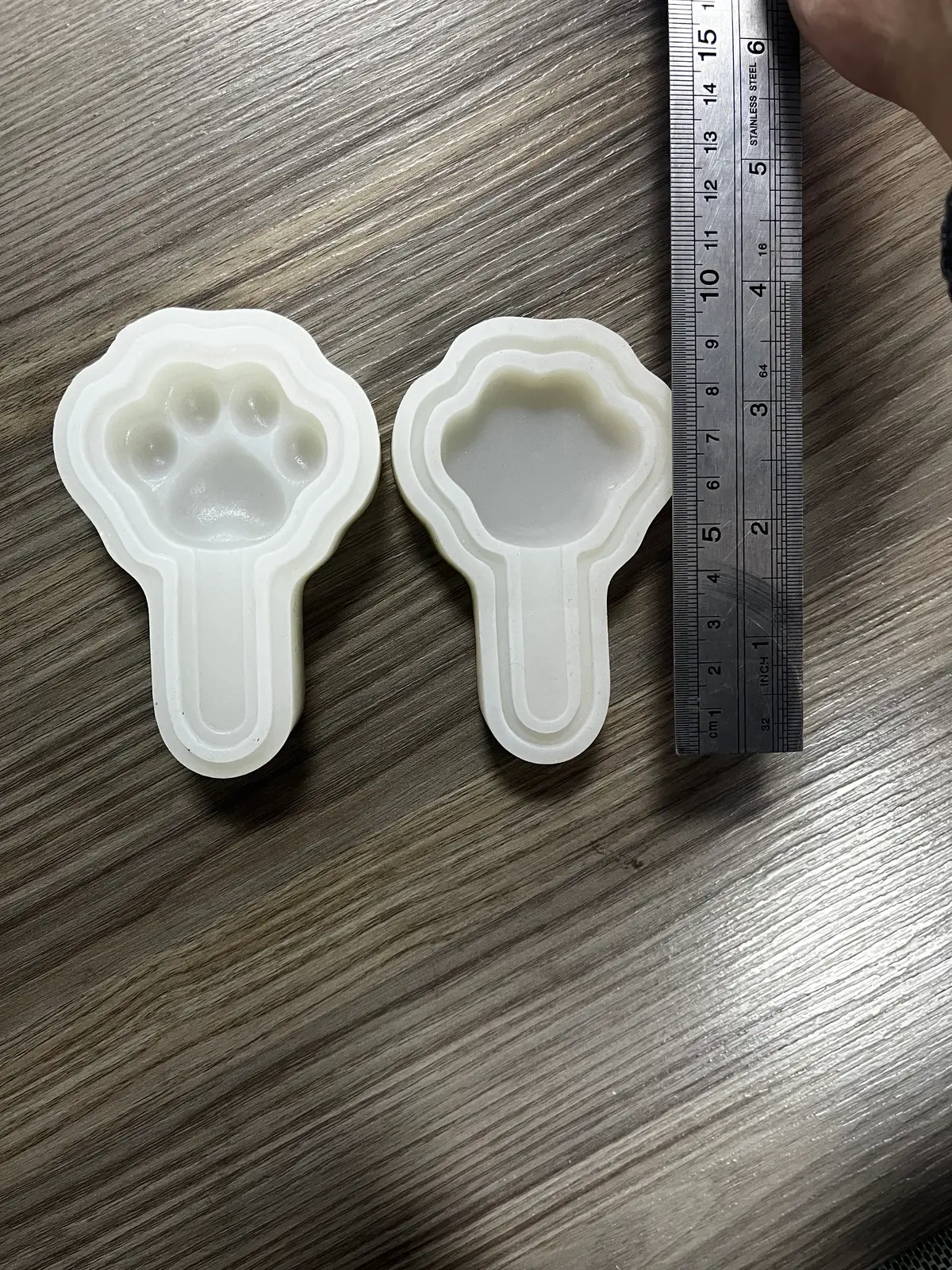

Gummy Cavity Volume vs Target Piece Weight

If a gummy must finish at 4.0 g, designing a 4.0 mL cavity is only correct by coincidence.

Finished gummy weight depends on:

• hot mass density;
• actual fill volume;
• solids content;
• moisture loss during setting/drying;
• coating or sanding;
• process variation.

The useful calculation begins with the target finished piece weight and works backward through the real formula.

The basic relationship

At deposit:

wet mass = cavity fill volume × hot-mass density

After drying or moisture loss:

finished mass = wet mass × retained mass fraction

This gives a first engineering estimate.

It is not a substitute for a real prototype because density and moisture loss can vary with formula and process.

Worked example - use as a method, not a universal formula

Assume:

• target finished piece = 4.0 g;
• hot gummy mass density measured by the customer = 1.25 g/mL;
• expected retained mass after drying = 0.92.

Required wet mass:

4.0 / 0.92 = 4.35 g

Estimated fill volume:

4.35 / 1.25 = 3.48 mL

That suggests a cavity near 3.5 mL before process tuning.

But the correct production cavity is only locked after actual deposited pieces are weighed.

If density or moisture loss changes, the answer changes.

Measure density instead of guessing where possible

A practical lab method can be:

1. bring the gummy mass to the normal depositing condition;
2. fill a known-volume vessel;
3. remove large trapped air;
4. weigh the filled mass;
5. subtract container mass;
6. calculate g/mL.

The exact test method should be repeatable.

If the production mass contains entrained air or changes temperature significantly during depositing, note that condition.

Density measured at room temperature may not represent hot depositing.

Drying loss matters more than many mold buyers expect

Two formulas can fill the same cavity at the same wet mass and finish at different weights.

Reasons include:

• different solids;
• pectin vs gelatin;
• drying time;
• room humidity;
• coating;
• acid system;
• final water activity target.

This is why a mold supplier should not promise finished grams from CAD volume alone.

The customer's formula/process owner must provide the final calibration data.

Why the same cavity can produce different finished weights

Suppose one cavity has a verified 3.5 mL working fill.

Formula A:

• density 1.22 g/mL;
• higher moisture loss.

Formula B:

• density 1.28 g/mL;
• lower moisture loss.

The same cavity can produce materially different finished piece weights.

If a customer switches formula, the mold may remain dimensionally correct while the label weight changes.

Cavity geometry also affects practical fill volume

A CAD cavity may have a nominal mathematical volume, but production fill may differ because of:

• meniscus;
• scrape plane;
• incomplete fill in fine details;
• air bubbles;
• underfilling near deep logos;
• tray not being level;
• depositor shot variation.

For flood-and-scrape, the top plane becomes a critical datum.

For nozzle depositing, shot volume and nozzle position are additional controls.

Use test cavities to calibrate before a 50-cavity tray

A useful development sequence:

1. model the target geometry at an estimated volume;
2. make 2-3 cavity-volume variants around the estimate;
3. deposit the actual formula;
4. run the actual set/drying condition;
5. weigh enough pieces to see normal variation;
6. inspect demolding and logo fill;
7. select the best geometry;
8. only then scale the production tray.

This is faster than machining one large production layout and correcting all cavities later.

Build a simple cavity calibration table

Example:

Use real values from the buyer's process.

The page should not publish fabricated trial numbers beyond illustrative calculation examples.

Weight consistency is not only cavity-volume consistency

If the center and edge cavities are geometrically identical but finished weights differ, investigate:

• tray sag;
• depositor alignment;
• scrape-plane flatness;
• temperature gradient;
• nozzle shot balance;
• inconsistent drying.

Do not immediately change cavity CAD.

The multi-cavity layout page should handle the positional weight map.

Supplement gummies need a stricter measurement plan

When active dose is linked to piece weight, mold cavity volume is only one part of the control system.

The manufacturer of the gummies remains responsible for:

• formulation homogeneity;
• active distribution;
• depositing;
• finished weight;
• labeling/compliance.

A silicone mold supplier can help control cavity volume and tray geometry but cannot guarantee dosage from the mold alone.

This distinction should be explicit.

What to send a mold manufacturer

For target-weight design, send:

• target final grams;
• acceptable finished weight range;
• pectin/gelatin/hybrid;
• hot mass density if known;
• Brix/solids if available;
• drying/set condition;
• coating/sanding process;
• desired geometry and maximum size;
• fill method;
• depositor shot volume if known.

If only target grams are known, state that density/moisture loss are prototype variables.
