RTV vs HTV Silicone Molds: A Practical Buyer's Guide

If you ask five silicone suppliers whether your project should use RTV or HTV, you may receive five different answers.

That does not necessarily mean someone is wrong.

The correct process depends on what you are making, how many molds you need, how stable the design is, and what level of repeatability matters to your production.

This guide is written for buyers who are not silicone-processing specialists.

The goal is simple:

By the end of this page, you should know which questions to ask before choosing RTV or HTV.

The shortest answer

Choose RTV when you need:

• lower initial tooling investment,
• one or a small number of molds,
• fast development,
• easy design changes,
• complex or sculptural geometry,
• a mold made directly from a master model.

Choose HTV when you need:

• many identical molds,
• a stable and frozen design,
• stronger repeatability,
• more controlled production,
• lower unit cost at larger quantities,
• a metal production tool that can be reused for repeat orders.

For a new product with larger future volume, the safest answer is often:

prototype with RTV → validate the design → move to HTV when the geometry and demand are confirmed.

1. RTV and HTV are not just two silicone materials

The biggest buyer misunderstanding is thinking that RTV and HTV are simply two grades of silicone.

They are also two very different manufacturing systems.

RTV mold

The silicone starts as a liquid.

It is mixed, degassed and poured around a master.

The master is removed after cure.

The silicone that remains is the finished mold.

HTV mold

The silicone starts as a solid gum-like compound.

Before production, the manufacturer first needs a metal mold.

The solid silicone is compounded, loaded into the metal tool, then vulcanized under heat and pressure.

The final silicone mold is therefore a compression-molded product.

2. What exactly is RTV-2 silicone?

Many professional mold-making silicones are RTV-2 systems.

“2” means there are two components.

Typically:

• Part A
• Part B

The components react chemically after mixing.

Depending on the formulation, the cure system may be:

• platinum addition cure,
• or condensation cure.

RTV-2 materials are widely used because they can reproduce a master without requiring a metal production mold.

This makes them extremely useful for:

• prototypes,
• sculptures,
• casting molds,
• low-volume production,
• personalized designs,
• new product validation.

3. Addition-cure RTV versus condensation-cure RTV

Not every RTV silicone should be treated as the same.

Addition-cure / platinum-cure RTV

Common advantages can include:

• low shrinkage,
• clean curing behavior,
• high-detail reproduction,
• good dimensional stability,
• food-contact grades available depending on material.

It can also be more sensitive to cure inhibition from certain materials.

Possible inhibition sources can include incompatible:

• sulfur-containing clays,
• amines,
• tin compounds,
• some resins,
• surface contaminants.

For a new master material, a small cure-compatibility test is sensible.

Condensation-cure RTV

Condensation systems are widely used for:

• craft molds,
• industrial molds,
• casting applications,
• decorative reproduction.

They may offer a practical cost/performance route for many non-food applications.

However, chemistry, by-products, shrinkage and documentation differ from platinum addition systems.

The selected material should match the project rather than being chosen from the letters “RTV.”

4. RTV production process in practical terms

A professional RTV mold is not simply “pour liquid silicone over the product.”

There are several engineering steps.

Master inspection

Before mold making, inspect:

• dimensions,
• draft,
• undercuts,
• surface defects,
• texture,
• weak projections,
• areas that can trap air.

The silicone will reproduce what is on the master.

A poor master creates a poor mold very consistently.

Split-line planning

If the casting cannot be removed in one direction, plan:

• split line,
• registration keys,
• plugs,
• removable cores,
• venting,
• pour opening.

This work can determine whether the mold lasts for repeat casting or tears during the first few demolds.

A/B weighing and mixing

RTV components must be mixed according to the specified ratio.

The ratio is not something the factory should guess.

Accurate weighing affects:

• cure,
• Shore,
• tear performance,
• surface quality,
• cure time.

Vacuum degassing

Vacuum is used to remove entrained air when needed.

This is especially useful for detailed cavities and thicker pours.

Detail coat / first contact layer

For fine textures, the first silicone touching the master should wet the surface without trapping bubbles.

This may involve slow pouring or careful brushing depending on mold construction.

Main pour

The silicone is poured into the mold box.

The pour should avoid trapping air in deep features.

Room-temperature cure

The mold is left until the material reaches sufficient cure.

The exact time depends on the selected silicone.

Master removal

The master is removed carefully.

For a split mold, both halves and keys are checked.

Functional test

A serious mold project should be tested with the intended material when possible.

This matters because:

• epoxy,
• polyurethane,
• wax,
• plaster,
• concrete,
• soap,
• chocolate,
• gummy mass

all behave differently during filling and demolding.

5. What is HTV/HCR silicone?

HTV usually refers to high-temperature-vulcanizing silicone.

For compression molding, the raw material is generally a high-consistency silicone rubber compound.

It is not a pourable liquid.

Before cure, it resembles a soft solid rubber mass.

It needs:

• compounding,
• curing agent,
• molding pressure,
• heat,
• production tooling.

This is why HTV becomes a much more industrialized process.

6. How HTV silicone is compounded

Buyers rarely see this step, but it matters.

Base silicone selection

The base compound is selected according to:

• hardness,
• tear strength,
• elongation,
• temperature,
• contact requirement,
• color,
• processing method.

Color addition

If the finished mold needs a custom color, a pigment/masterbatch is mixed into the silicone.

The target should be approved using a physical color reference.

Cure-system addition

HTV/HCR needs a curing package.

Depending on the material and use, the system may be:

• platinum addition cure,
• peroxide cure.

For premium food-contact molds, platinum systems are often evaluated because of their curing characteristics and documentation possibilities.

But the correct cure system must be selected with the material supplier and application requirements.

Two-roll milling

The silicone can be worked on a two-roll mill.

The rolls help distribute:

• pigment,
• catalyst/crosslinker,
• additives.

The compound is folded and passed through the rolls repeatedly until the mixture is uniform.

This step influences production consistency.

If pigment or curing system is distributed poorly, the final molded silicone can show:

• color variation,
• cure variation,
• inconsistent mechanical properties.

7. Why platinum curing must be handled carefully

“Platinum cured” is commonly requested by buyers, especially for:

• food molds,
• baby products,
• premium kitchenware,
• some medical-related components.

But platinum cure is a chemical system, not a marketing label.

The compound should be:

• designed for platinum cure,
• mixed with the correct components,
• kept away from known inhibitors,
• processed within the recommended cure window.

Poor catalyst control can cause:

• under-cure,
• inconsistent surface,
• poor release,
• physical-property variation.

The material datasheet and validated production recipe should govern the process.

8. Compression molding step by step

After compound preparation:

Metal tool preparation

The metal compression mold is cleaned and brought to production condition.

Material preform

A controlled quantity of silicone is cut or formed.

The purpose is to provide enough material to fill the cavity without creating excessive flash.

Loading

The preform is positioned inside the tool.

Tool closing

The press closes the mold under pressure.

Heating and vulcanization

Heat and pressure cause the material to flow and crosslink.

Mold opening

After sufficient cure, the tool opens.

Demolding

The silicone mold is removed.

Trimming

Flash is removed from the parting line.

Post-cure if required

Some applications/material systems may require post-cure.

Inspection

The production mold is checked for:

• cavity quality,
• flash,
• dimensions,
• Shore where specified,
• visual defects,
• flatness,
• color,
• functional use.

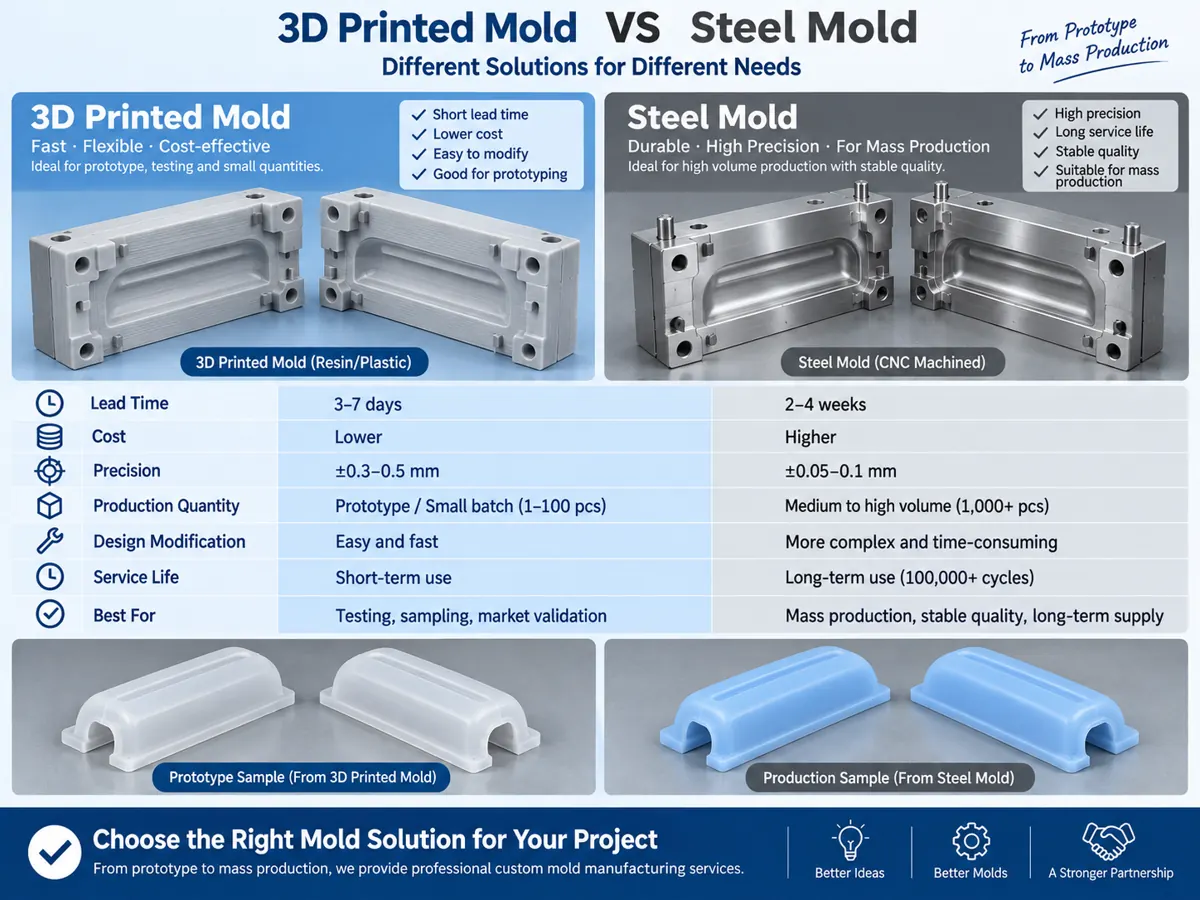

9. The biggest commercial difference: where you spend the money

RTV and HTV distribute project cost differently.

RTV cost structure

More cost is concentrated in:

• 3D/master development,
• manual mold making,
• silicone material,
• labor,
• finishing,
• split/core/mother-mold work.

Tooling investment is relatively low.

HTV cost structure

More cost is concentrated in:

• metal mold design,
• CNC/EDM/tool manufacture,
• tooling validation.

After that, repeat molded parts can be produced more efficiently.

This is why HTV is not automatically “expensive.”

It is expensive before production but can become more economical during repeated production.

10. Buyer quantity is one of the most important variables

Consider three buyers.

Buyer A — needs 2 molds

They are making decorative resin objects.

RTV is the obvious first process.

Buyer B — needs 30 trial trays

They are developing a commercial gummy product and still changing cavity weight and tray pitch.

RTV/soft tooling is usually safer.

Buyer C — needs 3,000 identical silicone trays

Their design has already been validated.

Now HTV/compression tooling deserves serious consideration.

The same geometry can justify a different process at a different stage.

11. Geometry can override quantity

Do not use quantity alone.

A highly complex full-3D sculpture may remain an RTV project even if the buyer needs multiple molds.

Why?

Because the shape may need:

• flexible splits,
• removable sections,
• plugs,
• large mother mold,
• deep undercut release.

Trying to compression mold the same silicone tool may create enormous metal-tool complexity.

Meanwhile, a relatively simple 24-cavity food tray may move to HTV quickly because the geometry suits compression molding.

12. RTV versus HTV for different applications

Resin molds

Usually RTV.

Reasons:

• complex undercuts,
• detailed surfaces,
• low-to-medium mold quantity,
• frequent custom designs.

Plaster and concrete molds

Usually RTV.

Large molds often need flexible silicone + rigid mother mold.

Candle molds

Usually RTV for sculptural or small-volume designs.

HTV may make sense for standardized high-volume shapes.

Soap molds

Both can work.

RTV:

• custom shapes,
• smaller quantities,
• quick development.

HTV:

• standardized multi-cavity molds,
• repeat commercial orders.

Gummy molds

Both can work.

RTV:

• shape/weight testing,
• pilot batches,
• low-volume custom work,
• early depositor validation.

HTV:

• stable cavity map,
• repeated tray production,
• higher quantity,
• standardized commercial output.

Chocolate molds

Same logic as gummy molds.

Baking molds

HTV is often attractive for standardized commercial production.

Large sculptural molds

RTV is usually more practical.

13. Accuracy and consistency: do not confuse the two

RTV can be highly accurate to the master.

That is detail accuracy.

HTV can be highly repeatable from one mold to the next.

That is production consistency.

These are related but different ideas.

If you need one perfect mold copied from a sculpted master, RTV may be excellent.

If you need 1,000 silicone trays whose cavities and outside dimensions are tightly controlled against one production tool, HTV usually has the stronger manufacturing structure.

14. Surface detail

RTV is naturally suited to:

• stone textures,
• skin texture,
• leather,
• sculptural detail,
• irregular cavities,
• artistic masters.

The liquid flows into the master surface.

HTV detail is limited less by the silicone and more by the metal tool manufacturing method.

If the detail can be produced reliably in the metal tool, HTV can reproduce it repeatedly.

15. Design changes

This is where RTV has a strong advantage.

If the customer changes:

• cavity size,
• logo,
• draft,
• handle,
• outer shape,

the manufacturer may be able to modify the master and remake the RTV mold relatively quickly.

For HTV, a design change can require:

• metal insert modification,
• CNC rework,
• welding/re-machining,
• or a new production tool.

That is why buyers should avoid freezing HTV tooling too early.

16. Production consistency

HTV generally has the stronger production system when making many identical molds.

Why?

Because the factory can control:

• material batch,
• preform weight,
• tool geometry,
• pressure,
• temperature,
• cure,
• cavity,
• trim.

RTV includes more manual steps.

This does not mean RTV is “low quality.”

It means the two processes are optimized for different business needs.

17. Food-contact projects

Do not choose a process only because a supplier says:

“HTV is food grade.”

Food-contact suitability depends on the actual material.

A buyer should ask:

1. Which silicone grade will be used?
2. Platinum or peroxide cure?
3. Is post-cure required?
4. Which report is available?
5. Does the report apply to this compound?
6. Which market is the product entering?

RTV and HTV can both have food-contact material options.

The correct process is still influenced by quantity and tooling economics.

18. A simple decision tree

Question 1

Is the design still changing?

Yes → RTV / prototype route first

No → go to Question 2

Question 2

Do you need only a few molds?

Yes → RTV is usually more economical

No → go to Question 3

Question 3

Is the geometry compatible with a metal compression tool?

No → RTV may remain the better route

Yes → go to Question 4

Question 4

Do repeatability and lower unit cost justify higher tooling investment?

Yes → HTV

No → compare total cost before deciding

19. A more useful cost calculation

Suppose HTV tooling costs significantly more than an RTV development route.

Do not compare only tooling price.

Calculate:

additional HTV tooling investment ÷ repeat unit saving = approximate break-even quantity

Then consider:

• repeatability,
• cycle,
• labor,
• scrap,
• quality,
• future demand.

This creates a real business decision.

20. How to know when to switch from RTV to HTV

You are probably ready to evaluate HTV when:

• final CAD is approved,
• product weight is validated,
• Shore is validated,
• customer has tested real use,
• cavity layout is frozen,
• machine compatibility is frozen,
• repeat quantity is predictable,
• design-change risk is low.

You are probably not ready when:

• you are still saying “maybe change the logo,”
• target grams are not proven,
• the physical mating product is not available,
• the prototype has never been used on the machine,
• customer has not approved the first functional sample.

21. Questions to send RUUIPON

If you are unsure which process to choose, send:

• product/mold image,
• 3D file if available,
• overall dimensions,
• cavity dimensions,
• quantity needed now,
• expected repeat quantity,
• casting/filling material,
• target Shore if known,
• application,
• destination country,
• required material documents.

Then ask for:

RTV route + HTV route comparison

The quote should explain the difference in:

• NRE/tooling,
• development time,
• unit price,
• quantity economics,
• expected process,
• and what should be validated before production tooling.

22. Final recommendation

Think of the two processes this way:

RTV

Flexible engineering route

Best when the project needs:

• development,
• custom geometry,
• lower initial tooling,
• small quantity,
• complex release,
• quick revision.

HTV

Repeat-production route

Best when the project needs:

• stable design,
• controlled repeat production,
• many identical molds,
• better unit economics at scale,
• industrialized process control.

For many B2B projects, the most sensible route is:

Do not choose HTV too early. Do not stay with RTV too long.

Use RTV to learn.

Use HTV when the learning is finished and the production economics justify the investment.

Send your project for an RTV vs HTV recommendation
