Flood-and-Scrape Silicone Molds: What to Brief Before DFM

What Is Flood and Scrape?

Flood and scrape is a high-efficiency depositing method used in commercial gummy, candy, and chocolate production. Instead of filling individual cavities one at a time, the entire mold tray is "flooded" with product material, and a scraper blade passes across the surface to remove excess and level all cavities simultaneously.

This method offers significant advantages over single-cavity deposition:

• Speed: Fill 48-144 cavities in a single pour
• Consistency: All cavities fill at the same time, reducing weight variation
• Efficiency: Minimal operator involvement, ideal for automated production lines
• Waste reduction: Excess material can be collected and reused

However, flood and scrape places unique demands on mold design that single-cavity methods do not. This guide explains the engineering considerations for flood-and-scrape compatible silicone molds.

Key Design Requirements

1. Surface Flatness

The top surface of the mold tray must be perfectly flat. This is critical because:

• The scraper blade rides on this surface to level product across all cavities
• Any warp, bow, or unevenness causes inconsistent product weight
• Surface irregularities create material waste and production delays

Specification: Surface flatness tolerance of ≤0.5mm across the entire tray surface.

2. Cavity Depth Consistency

Every cavity in the tray must have identical depth. Variation in cavity depth directly translates to variation in product weight:

Specification: Cavity depth tolerance of CAD-locked cavity dimensions across all cavities.

3. Structural Rigidity

During the scraping phase, the blade applies downward pressure across the entire tray surface. The tray must resist flexing under this pressure:

• Insufficient rigidity: Tray flexes, causing uneven scraping and variable cavity fill
• Adequate rigidity: Tray remains flat, scraper makes consistent contact, all cavities fill uniformly

Design features for rigidity:

• Structural ribbing between cavity rows
• Reinforced border frames (minimum 25mm width)
• Strategic rib placement that doesn't interfere with depositor nozzles
• Optimal tray thickness (typically 15-25mm depending on tray size)

4. Nozzle Clearance

The cavity layout must provide adequate clearance for your depositor's nozzle array:

• Minimum clearance: 10mm between cavity edge and tray edge
• Nozzle spacing: Layout must match your depositor's nozzle row and column spacing
• Scraper path: No cavities should be positioned where the scraper blade would cause obstruction

5. Pour Gate Design

For optimal fill performance, pour gates should be designed to:

• Distribute material evenly across all cavities
• Minimize air entrapment
• Allow excess material to flow to overflow channels
• Be positioned for easy access by the depositor nozzles

Compatible Depositor Systems

Our flood-and-scrape molds are engineered for compatibility with all major depositor brands:

Mold Architecture for Flood and Scrape

One-Piece (Open) Molds — Recommended

For flood-and-scrape applications, one-piece (open) molds are the standard choice because:

• Cavities are open to the top, allowing direct flooding
• No parting line to interfere with scraper contact
• Higher cavity density possible (up to 144 cavities per tray)
• Simpler design, faster production, lower cost

Two-Piece (Split) Molds — Special Cases

Two-piece molds can be used for flood-and-scrape applications when:

• The product requires 3D detail on all surfaces
• The design includes undercuts
• Regulatory symbols require full encapsulation

Considerations for two-piece flood-and-scrape:

• Parting line must be perfectly flush to maintain scraper contact
• Registration pins must maintain alignment under depositor pressure
• Tray rigidity is even more critical with two-piece construction

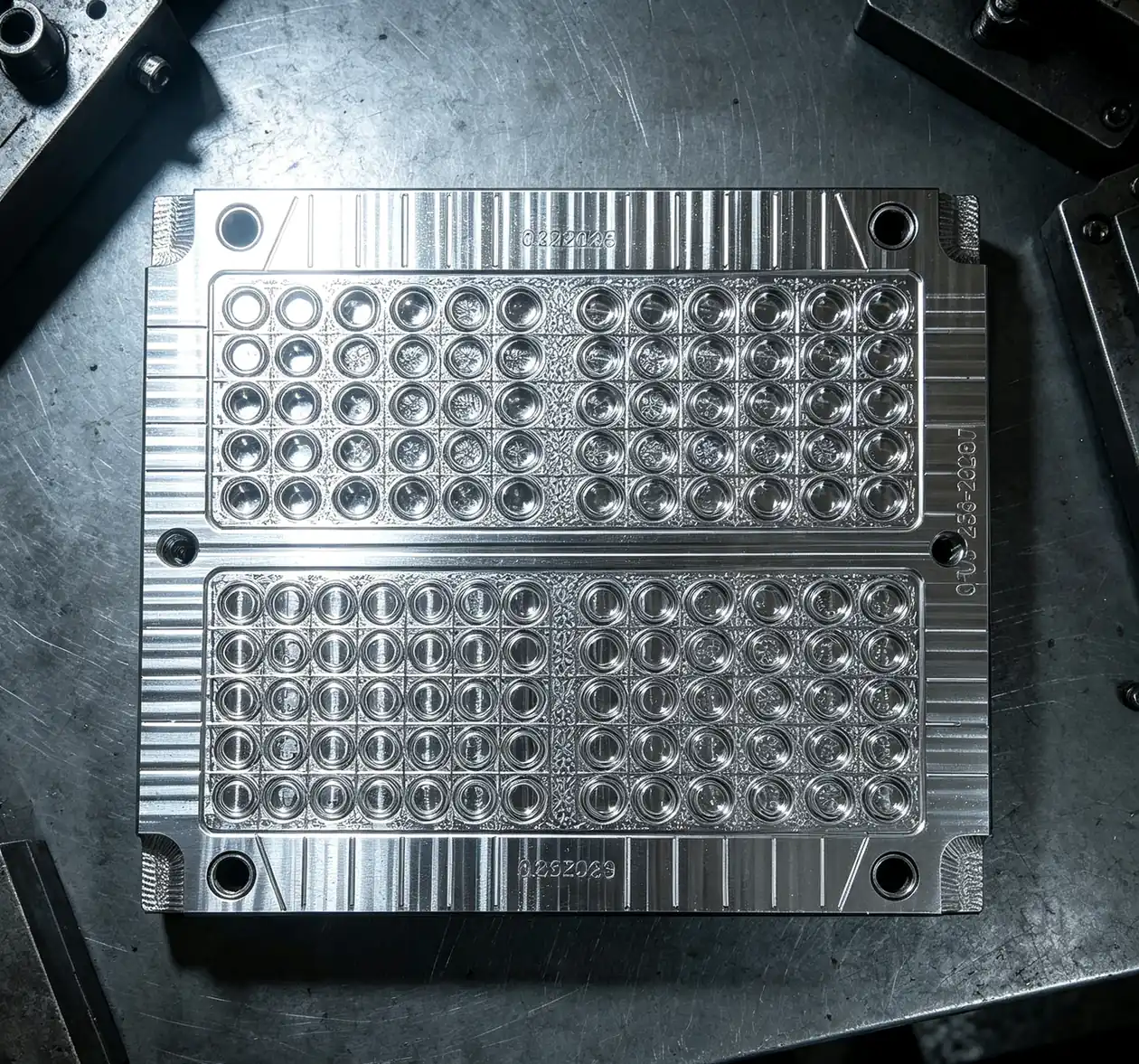

Tray Layout Optimization

Standard Tray Sizes

Layout Design Principles

Uniform Fill: All cavities must be equidistant from pour gates to ensure simultaneous fill. Asymmetric layouts require careful gate positioning.

Structural Balance: Cavity arrangements should be symmetric or carefully balanced to prevent tray warping during production.

Accessibility: Cavity rows must be accessible to depositor nozzles with adequate spacing for nozzle movement and scraper passage.

Maintenance and Care for Flood-and-Scrape Molds

Daily Maintenance

• Inspect scraper contact surfaces for wear or damage
• Check cavity edges for tearing or deformation
• Clean excess material from tray surface immediately after production

Weekly Maintenance

• Deep clean cavities with food-safe detergent
• Inspect registration pins (for two-piece molds) for wear
• Verify surface flatness with a straight edge

Monthly Maintenance

• Measure cavity depth consistency across the tray
• Check for cumulative wear patterns
• Plan proactive replacement before production issues arise

FAQ

Q: Can I use my existing molds with a new depositor? A: Possibly, but we recommend verifying compatibility. Depositor nozzle patterns, scraper width, and tray dimension requirements vary by brand and model.

Q: How do I know if my current molds are suitable for flood and scrape? A: Check if your molds have a flat top surface, consistent cavity depth, and adequate structural rigidity. If you're experiencing weight variation or scraper issues, your molds may need redesign.

Q: What tray size do I need for my depositor? A: This depends on your depositor's specifications. Contact us with your depositor brand, model, and nozzle pattern, and we'll recommend the optimal tray configuration.

Q: Can flood-and-scrape molds be used for hand pouring? A: Yes. While designed for automatic deposition, flood-and-scrape molds work equally well for manual filling. The open cavity design allows easy manual pouring.
