What High Precision Means for a Custom RTV Silicone Mold

If you're RFQing a "high precision" custom RTV silicone mold, precision is master finish plus pour quality plus a jacket that stays registered. It isn't a slogan on a spindle brand. A platinum RTV jacket can copy a master to impressive detail and still not be an LSR production tool. Steel can be ground tighter than a 20A lip will ever measure — that's a molded *part* conversation, a different WYD-style quote. If the RFQ only says "high precision silicone mold," shops will quote three different factories.

This article splits cavity precision from dump precision, then says when tighter finishing is wasted. No invented Cpk. No fake micron table. ISO 3302-1 is a drawing class, not another word for precision.

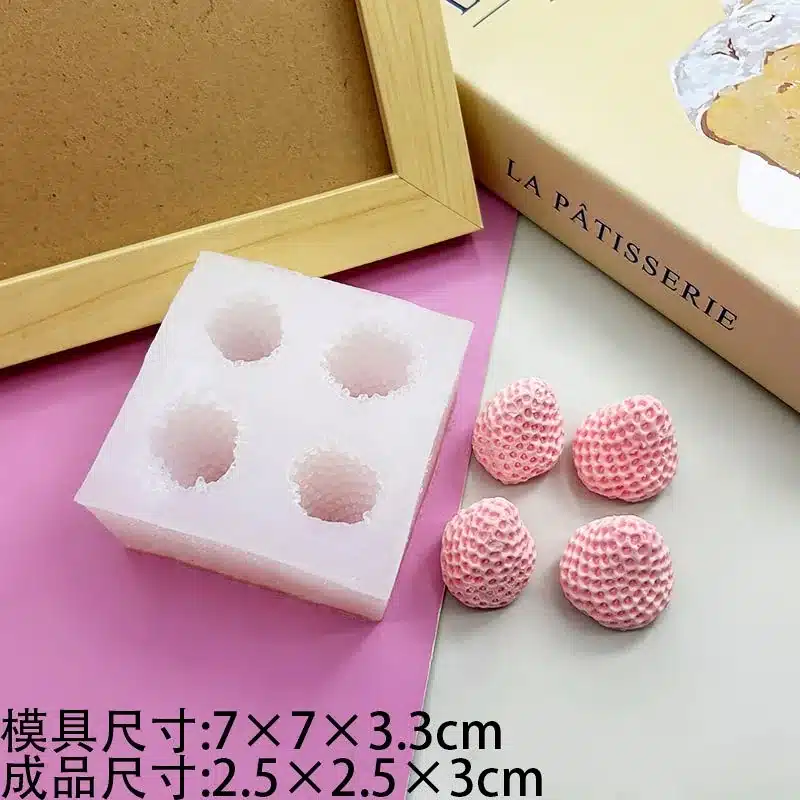

Precision of the cavity versus precision of the dump

RTV cavity (this site). Precision is master finish plus pour quality. Print lines, inhibition pits, and jacket registration set the ceiling. Degassing mixed platinum RTV (1:1 or 10:1) helps detail. Tin-cure RTV can copy a dirty master and then keep shrinking, which is the opposite of precision over time. A 10A–20A skin without a jacket can sag about 0.5–1.5 mm at the edge; that looks like "the shop can't hold size" and is a missing mother mold.

Article (the dump). Use ISO 3302-1 classes if you're dimensioning a rubber tray or a cast article. Elastomer shrink of the *dump*, wait time, and probe sink dominate. A high-precision master with the wrong shrink factor (an LSR 2–3% pasted on platinum) prints a systematically wrong pocket. A high-precision cavity with a floppy fixture prints a random part.

Metal part cavity. Metal tools are inspected like metal: mill, grind, EDM, CMM on steel. Inserts can be held to a tight shut-off. That precision is real. It buys flash control on LSR and a predictable land on HCR. It doesn't buy an ISO 2768 article, and it isn't this product.

Don't mix the three inspection reports. A steel CMM of a LIM pocket isn't a first-article of a chocolate dump.

Overmolded LSR on a plastic or metal insert adds another datum: the substrate. If the insert walks in the tool, the rubber looks "imprecise." That's the parts RFQ. Fixture the insert, not only the lip.

Steel, grind, and EDM that actually hold a shut-off — on the other quote

LSR flash is a shut-off problem. Precision there means the land actually meets, stays flat when hot, and doesn't chip. Pre-hard versus hardened steel is a duty choice. Aluminum can be precise enough for a prototype LSR tool and still mushroom on a high-volume shut-off.

EDM texture and VDI 3400 / MT 11000 grain are extra geometry. They aren't a substitute for a flat land. Polish that rounds a shut-off edge is how a "precision" tool starts flashing after a well-meant polish pass.

HCR compression precision is a different land: overflow by design. Grinding the land to an LSR-style knife edge will chip and still not make LIM flash. Precision means even plate close and even charge, not a copied injection shut-off.

Replaceable inserts are how you keep metal precision after a ding. A monolithic pretty block that can't be repaired is a museum piece. On RTV, the analog is a recast against the unsanded master — keep the master.

Measurement: optical, CMM, fill-weight, and probe sink

Contact CMM on soft silicone is often probe sink. If you need a tight class on a nest or a key, fixture it as used and prefer optical methods, or check fill-weight on chocolate and gummy pockets. State tip, force, and wait if you insist on contact. State free-state versus fixtured for floppy trays.

Measure after the wait the lot will see. Measure every cavity on a multi-cavity tray, not the hero pocket. High precision that lives on one cavity is a photograph.

The master can use ordinary metal or print metrology. Keep that report in the pattern file. Don't paste it into the dump pack as proof the tray is "±0.02 mm."

Process window that keeps the first cavity honest

Precision dies when the RTV pour is dumped in a blob, when the jacket walks, or when tin is treated as a library dimension. SPC on fill-weight, peel, and a named wait will tell you more than a once-a-year CMM show.

On LSR, precision dies when heat is uneven; on HCR, when charge weight walks. Those windows live on the parts quote.

Draft and polish are part of precision because stick makes operators pry, and pry distorts the lip you paid to copy. Soft 10A–20A on a glossy master well can vacuum-lock a dump. Blast or extra draft on the *master* is sometimes the precision move.

Contamination is a precision killer on platinum systems. A tin RTV bench next to a platinum pour will eventually write a mystery tack that looks like "the tool drifted."

When tighter finishing is wasted on a floating part

Wasted when:

• The article is a 15A tray measured overall in free state.
• The drawing still changes.
• Shrink ownership is unset.
• You specified metal tolerances on rubber.
• Production is RTV and you bought LIM-grade steel.
• You won't fixture the five dimensions that matter.
• You skip the jacket and then fail the outer row for sag.

Texture depth should be on the same drawing as the precision claim. Grain on the master that isn't called out will be "interpreted." Polish that isn't called out will be a mirror on a 20A skin, which then sticks, which then gets pried. Precision without finish notes is incomplete CAM.

Useful when:

• Pocket volume is the product and you will weigh every cavity.
• Keys must recast without losing registration.
• Logo depth is the brand and you will actually measure it.
• Cavity count is high enough that sag would ship scrap.

A practical China evaluation of "high precision" on this site is: master-finish photos, a jacket that stays flat, a witness dump in ISO 3302-1 language or fill-weight, and a named platinum vs tin process. Micron claims with no Shore A and no fixture are decoration. Ask which cavity was measured. If the answer is "the sample we sent," you saw the hero pocket.

High precision RTV molds hold a master and a jacket. They don't repeal elastomer physics. Buy the first. Stop quoting the second. Don't buy LSR shut-off as a substitute.

Common mix-up: ±0.02 mm as a mold grade

A lot of RFQs treat a micron box as "high precision silicone." In the shop that usually means a mill quoting steel while you needed a poured tray, or a pourer ignoring every number because none of them were rubber. Name ISO 3302-1 as a class, name the five dims, name the process.

What to ask when you're buying

• Process: platinum or tin RTV, or did someone quote LSR steel?
• Five dimensions that matter; ISO 3302-1 class; fixture or fill-weight?
• Jacket registration and sag control?
• Who keeps the unsanded master for the recast?
• Any micron claim without Shore A — can they delete it?

Worked example: keys and fill-weight, not a micron slogan

A gummy line wanted a 16-cavity 22 mm bear, 4.0 g, food-contact, about 8,000 dumps a month, keys that recast to the same nest. Precision that earned its keep was CNC master finish, platinum 10A–20A skin, rigid jacket so edge sag stayed off the 0.5–1.5 mm band, and fill-weight on every pocket. A ±0.02 mm LSR shut-off quote didn't deposit pectin and wouldn't have measured the 20A skin honestly under a probe.

When this precision talk does not apply

If flash class on a membrane is the product, don't buy RTV "precision" as a LIM substitute. Quote LSR on a parts OEM. A one-off art pour in tin-cure doesn't need a library CMM. Geometry can override quantity: a hollow chocolate on a mandrel is two measurement states even at 80 dumps.

Related reading: tolerance standards, shrinkage factors, quality inspection, custom RTV molds.

Precision pack to copy onto the RFQ

Copy this. A micron line without these items isn't precision.

• Process: platinum or tin RTV (ban HCR/LSR substitution)
• Five dims that matter; ISO 3302-1 class (drawing class, not a slogan)
• Jacket / keys / fill-weight method
• Master finish: CNC / post-cured SLA plus barrier
• Measure at 23 °C after wait ____; every cavity
• Who keeps the unsanded master

Send the STEP, the five dims, and the dump compound. We'll mark which numbers are jacket, pocket, or dump, and we'll refuse a micron slogan that doesn't name Shore A.

We would not recommend buying LIM-grade steel for a poured tray

We would not recommend calling ISO 3302-1 "precision." We would not paste ±0.02 mm on a 20A lip. We would not skip the jacket and then fail sag as a capability miss. We would not raise Shore A first to "hold tighter numbers."

RUUIPON Mold Structure Decision: precision is master + pour + jacket, not a spindle brand. Flat back? open-back, still jacket if 10A–20A. Deep undercuts that won't peel? split/core — tighter finishing doesn't unlock a barb. Wet dump? mother mold before you tighten the class.

flowchart TD
  A[RFQ says high precision] --> B{Object is RTV cavity?}
  B -->|no, LSR shut-off| C[Stop: different part RFQ]
  B -->|yes| D[Master finish plus degas plus jacket]
  D --> E{ISO 3302-1 as drawing class?}
  E -->|micron slogan only| F[Reject language]
  E -->|five dims plus fixture or fill-weight| G[Witness every cavity]

Typical shop values

Caption: Typical shop values (not a named lot).

| Item | Typical shop value | | --- | --- | | Mix | Platinum 1:1 or 10:1; vacuum degas | | Cavity Shore | 10A–20A skin with jacket | | Platinum shrink after full cure | About 0.1–0.3%; tin keeps moving — opposite of library precision | | ISO 3302-1 | Drawing class, not "precision"; M2 is a common default conversation | | Loaded-tray edge sag without a jacket | About 0.5–1.5 mm | | Contrast: LSR *part* shrink | About 2–3% on steel — different RFQ |

FAQ

Can a high precision silicone mold hold ±0.02 mm on a 20A part? The master might. The dump often won't, under a CMM probe. Use ISO 3302-1, a fixture, and fill-weight for pockets. Don't copy a mill tolerance onto rubber.

Is a precision RTV mold the same as a precision LSR tool? No. RTV precision is master and pour. LSR precision is hot steel shut-off and a LIM window. Detail on a figurine doesn't prove flash class on a membrane.

Does imported CNC make a silicone mold high precision? Not by itself. Master finish, degas, jacket, shrink policy, and measurement do. A cheap well-registered jacket beats an expensive mill with a missing mother mold.

Should I inspect the tool or the dump for precision? Both, with different methods. Pattern practices for the master. ISO 3302-1 and a fixture or fill-weight for the article. One report can't stand in for the other.

How do I RFQ high precision without inviting a slogan quote? Name platinum or tin RTV, list the five dimensions that matter, name ISO 3302-1 class, sag/jacket, and fixture or fill-weight. Ban unspecified micron claims.
