Custom Silicone Mold Design Process: From Concept to Production

Overview of the Commissioning Process

Ordering custom silicone molds is a collaborative engineering process. Understanding each phase helps you set realistic expectations and ensures a smooth collaboration from initial inquiry to production delivery.

This guide walks through our five-phase custom mold commissioning process.

Phase 1: Requirements Definition (Days 1-3)

What We Need From You

Before any design work begins, provide the following information:

Product Specifications:

• Target product dimensions (length × width × height per piece)
• Target weight per cavity (in grams)
• Expected production volume (pieces per shift / per month)
• Product shape description (attach reference images if available)

Production Requirements:

• Equipment compatibility (hand pour, flood & scrape, automatic depositor model)
• Cooling method (walk-in chiller, refrigeration, ambient cooling)
• Demolding method (manual, semi-automatic, fully automatic)
• Packaging requirements (tray size, orientation, handling)

Regulatory Requirements:

• State symbols or compliance markings required
• Dosing accuracy specifications (a job-specific weight band after DFM or tighter)
• FDA compliance documentation needs
• Any additional regulatory markings

Branding Assets:

• Logo in vector format (.AI, .EPS, or .SVG)
• Text or tagline to be embossed
• Custom shapes or design elements

Existing References (if applicable):

• 3D model files (STEP, STL, IGES, or OBJ format)
• Technical drawings with dimensions
• Hand sketches with annotations
• Physical product samples (for reverse engineering)

What We Provide

Within 24 hours of receiving your requirements:

• Confirmation of requirement completeness
• Preliminary feasibility assessment
• Estimated timeline and pricing range
• Any clarifying questions

Phase 2: CAD Engineering and Layout Optimization (Days 4-10)

Engineering Design Process

Using SolidWorks, our engineering team designs:

Cavity Geometry:

• Optimized for your product shape and dimensions
• Correct depth for target weight per cavity
• Appropriate draft angles for demolding
• Detail reproduction optimized for silicone casting

Multi-Cavity Tray Layout:

• Maximum cavity count within your tray size requirements
• Uniform fill characteristics across all cavities
• Structural ribbing for tray rigidity
• Alignment features for two-piece molds (if applicable)

Pour Gate Design:

• Positioned for optimal material distribution
• Sized for your production volume and viscosity
• Designed for easy cleaning and maintenance

Registration System (Two-Piece Molds):

• Alignment pins and corresponding holes
• Lock-and-key geometry for asymmetric molds
• 0.1mm clearance for precise half-to-half alignment

Your Review and Approval

You receive:

• Full CAD render — Photorealistic visualization of the mold design
• Technical specifications — Cavity dimensions, tray size, durometer recommendation
• Production estimates — Expected output per pour, cycle time estimates
• Pricing quotation — Detailed cost breakdown

Review period: 3-5 business days for your feedback and approval.

Phase 3: Master Model Fabrication (Days 11-14)

Master Model Options

The mold cavity is a negative impression of your product master. Masters are produced via:

SLA 3D Printing (Recommended)

• 50μm layer height for high detail
• Post-cured and IPA-washed for surface quality
• Clear or Grey General Purpose resin for optimal detail
• Suitable for most geometries and sizes

CNC Machining

• For larger formats or specific material requirements
• Higher material strength for complex geometries
• Suitable for metals, woods, or rigid plastics

Traditional Sculpting

• For organic or artistic designs
• Hand-crafted detail reproduction
• Suitable for one-off or limited-run productions

Surface Quality Standards

Surface finish quality on the master directly transfers to the mold cavity, which determines the surface quality on your product. We maintain:

• Layer height: 50μm (0.05mm) for SLA printing
• Surface finish: a production surface finish set at DFM for high-detail applications
• Support removal: Carefully processed to minimize surface marks
• Post-processing: IPA washing and UV post-curing for optimal surface quality

Phase 4: Prototype Mold and Validation (Days 15-21)

Prototype Manufacturing

We manufacture a prototype mold using the approved master model. This prototype is shipped to you for testing.

Validation Testing

During the prototype testing phase, you validate:

Weight Accuracy:

• Weigh 10 pieces from different cavities
• Verify weight consistency within a job-specific weight band after DFM tolerance
• Document results for your quality control records

Demolding Performance:

• Test release from all cavity types
• Verify clean release without tearing or sticking
• Assess operator effort required

Detail Fidelity:

• Inspect logo sharpness and text legibility
• Verify surface texture reproduction
• Check for any detail loss compared to master

Equipment Compatibility:

• Verify tray dimensions fit your depositor
• Confirm nozzle clearance and scraper compatibility
• Test alignment with your production line

Adjustment and Re-Prototype

If adjustments are needed:

• Minor adjustments: We modify the master and re-produce the prototype
• Major redesign: We revise the CAD design and restart the process
• Approval: You confirm the prototype meets all requirements

Phase 5: Production Run (Days 22-35)

Manufacturing Process

Once the prototype is approved, we manufacture your full order:

Material Preparation:

• Platinum-cured silicone formulation selected
• Durometer verified (20A-25A standard, or custom specification)
• FDA compliance documentation prepared

Mold Manufacturing:

• Silicone mixed and degassed to remove air bubbles
• Poured over master model in controlled environment
• Cured under specified conditions (typically 4-8 hours)
• Demolded and inspected for quality

Quality Control:

• Dimensional verification of all cavities
• Surface finish inspection
• Material certification verification
• Documentation preparation

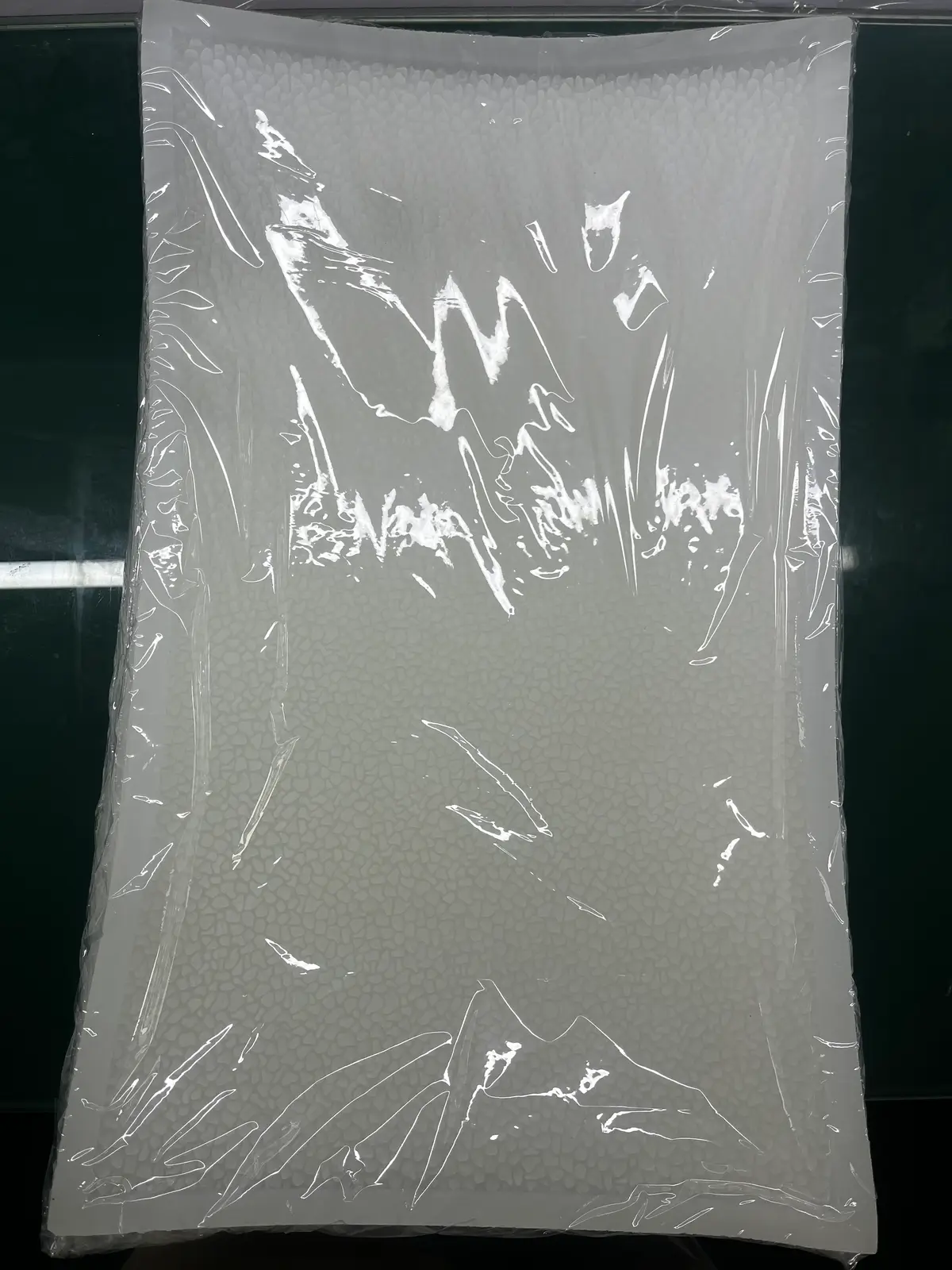

Shipping and Documentation

Every production order includes:

Typical Lead Times

Post-Production Support

Technical Support

• Equipment compatibility consultation
• Production optimization recommendations
• Troubleshooting guidance

Mold Modifications

• Design changes for production adjustments
• Regulatory symbol updates for state requirement changes
• Durometer adjustments for different applications

Replacement and Reorder

• Volume pricing for repeat orders
• Expedited production for urgent needs
• Legacy mold archiving for future reference

FAQ

Q: What happens if I'm not satisfied with the prototype? A: We work with you to make adjustments until the prototype meets your requirements. Our prototype-first approach ensures you're satisfied before full production begins.

Q: Can I request changes after approval? A: Yes, changes can be made at any phase. However, changes after Phase 3 (Master Fabrication) may incur additional costs and extend the timeline.

Q: Do you offer rush production? A: Yes, rush scheduling is available for time-critical launches. Contact us with your requirements and timeline.

Q: What if I need additional molds after the initial order? A: We offer volume pricing for repeat orders and can archive your mold designs for future reference.
