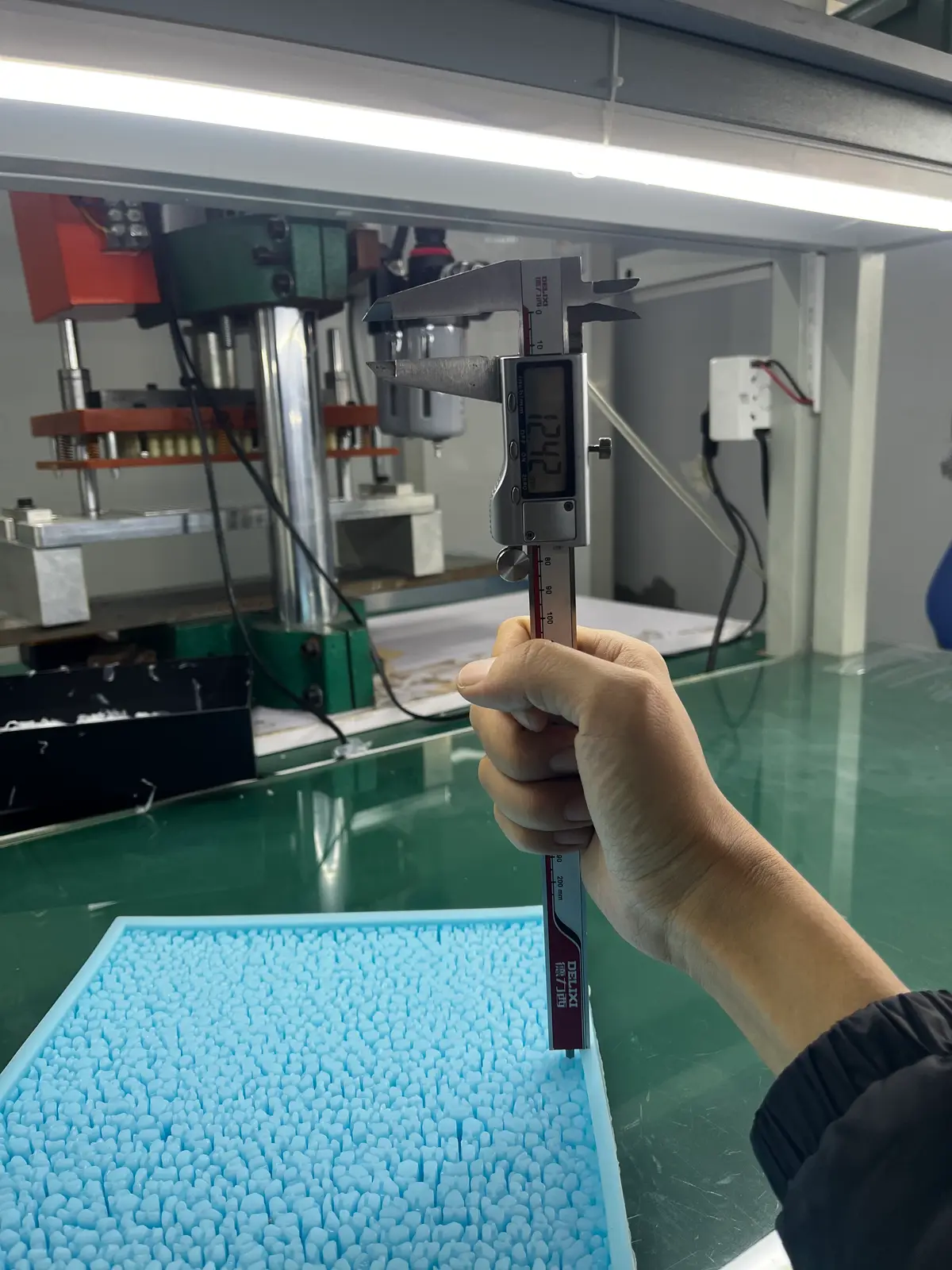

Why Fine Texture Wears Away-and How to Diagnose Silicone Mold Failure

When fine texture disappears from a silicone mold, the silicone grade is only one possible cause. The real failure can be abrasion, tearing, chemical swelling, permanent deformation, cure inhibition, cleaning damage or master-detail loss that was present from day one.

A useful root-cause analysis starts by naming the failure mechanism, not by blaming "low-quality silicone."

Step 1: classify the symptom

Abrasion

Texture peaks become rounded or polished gradually. Common with concrete, plaster, mineral-filled resin or aggressive scrubbing.

Tear / micro-tear

Fine islands or ridges break away around lettering, sharp texture, thin webs or forced undercuts.

Swelling / tack

The surface becomes soft, sticky or dimensionally changed. Investigate resin chemistry, fragrance/oils, solvent cleaning or long chemical exposure.

Permanent distortion

Texture still exists but no longer sits in the correct geometry. Investigate unsupported load, folded storage, heat or compression.

Inhibition / incomplete cure

Surface detail is soft or sticky from the beginning. Investigate master chemistry, mix/cure and contamination.

Abrasive casting materials wear the tool physically

Concrete and plaster can abrade fine texture through mineral particles, repeated demolding drag, hardened residue scraping and abrasive cleaning. Evidence often includes progressive polishing in high-contact zones without swelling or tack.

Corrective action can involve peeling rather than dragging, gentler cleaning, process changes or planned recasting.

Geometry-driven stress destroys detail selectively

If only one logo island or texture ridge fails, inspect local wall/root thickness, sharp internal radius, peel direction and undercut depth.

A global material change may not be necessary. The mold can be healthy everywhere except one mechanically overloaded feature.

Chemical exposure changes the surface differently

Chemical damage can produce tackiness, swelling, softening, discoloration, odor retention or changed release. Compare exposed and unexposed areas. If one casting formulation causes the issue and another does not, run a compatibility test.

Cleaning damage can imitate production wear

Operators may use metal picks, stiff brushes, abrasive pads or strong solvents. The damage often follows cleaning access paths rather than casting geometry.

Look for scratches, cuts, polished zones and local gouges. If wear is operator-induced, a new silicone grade will not solve it without a cleaning SOP change.

Master-detail loss must be ruled out

Compare the approved master, first approved mold/casting and current mold/casting. If the first article was already soft, the problem belongs to master finishing or initial silicone capture-not mold life.

This is why golden macro photos matter.

Use an evidence matrix before changing material

Mold life should be tracked by failure mode

Do not log only "mold lasted eight months." Log casting material, approximate cycles, temperature, cleaning, first symptom, failure location and retirement reason.

That data can be used to redesign future reorders.

Relationship to other RUUIPON pages

P42 explains how fine texture is captured initially. P69 handles stone texture + concrete bubbles. P83 addresses what happens after repeated production and how to identify the failure mechanism. P87 handles lifecycle decisions after diagnosis.
